HIDROMATIC PONENT para Finca Almacín (Lleida)

The solution developed consists of a series pumping system arranged across two pumping stations, integrating two new pumping units with the existing installations. This configuration enables optimal pressure distribution along the pipeline while ensuring greater operational reliability.

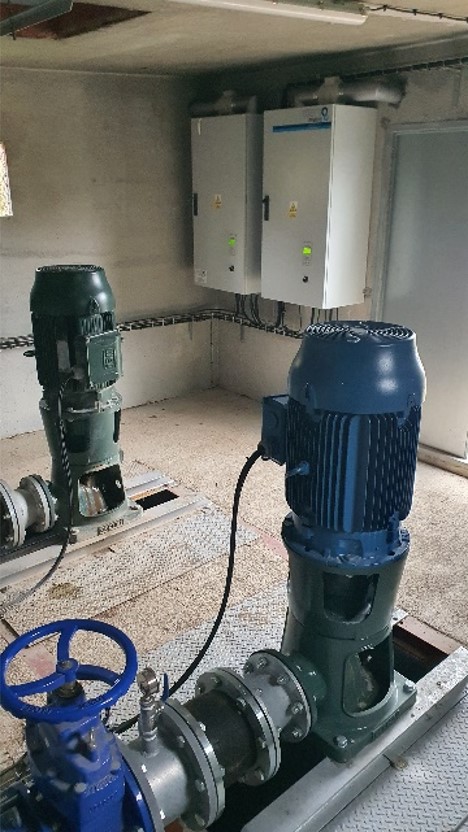

Pumping Station 1 (P.S.1)

The long-shaft Series P vertical pumps abstract water from the Segre River. The water is lifted and conveyed to the second pumping station, located approximately 3 km away, providing an efficient and controlled first-stage boost.

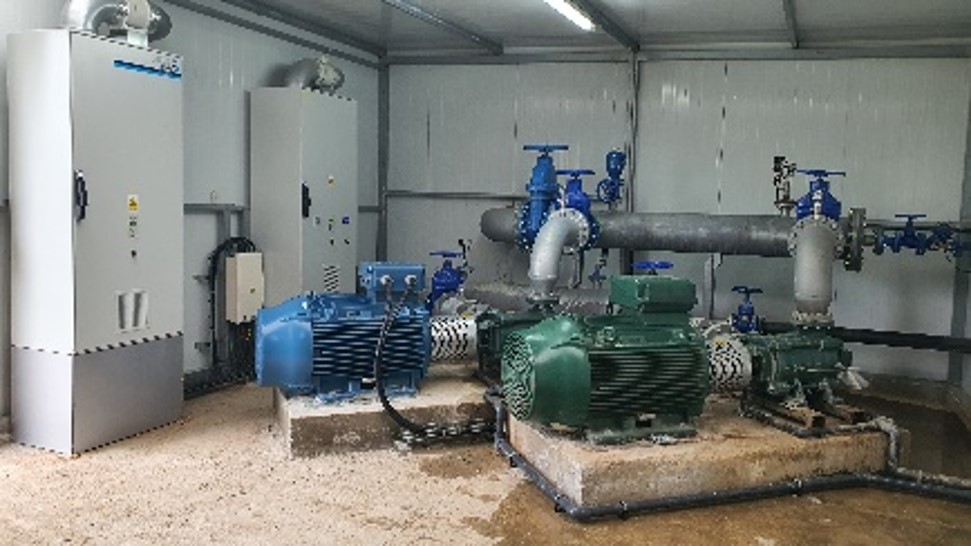

Pumping Station 2 (P.S.2)

The high-pressure multistage Series PM horizontal pumps complete the process, ensuring the filling of the irrigation reservoir. Thanks to their capability to generate high pressures, these pumps guarantee proper water transfer even in the presence of significant elevation differences and head losses.

This approach makes it possible to:

• Optimize pressure management throughout the network, preventing pipeline overload.
• Increase the overall system flow rate in a safe and controlled manner.
• Improve energy efficiency through the use of high-efficiency IE3 and IE4 motors.
• Ensure operational continuity and management flexibility.

The entire installation was designed to provide maximum reliability, durability, and high performance, contributing to the efficient and sustainable management of water resources for irrigation purposes.
